5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

Model NO. : PF-AM094

Type : Drone Uav Protect Module

Support Network : All

Information Content : All

Brand Name : Pdfy

Product Name : RF GaN Power Amplifier Module

Frequency : 5725-5850MHz

Output Power : 40W

Gain : 47dBm

Voltage : 24-32V

Product Weight : 136g

Intra-Band Fluctuations : ≤2.5 (Peak-to-Peak Value)

in-Band Group Delay : ≤1us

Input Voltage Standing Wave Ratio : ≤1.35

Transport Package : Carton

Specification : 170*94*26.5mm

Trademark : No

Origin : Guangdong, China

Place of Origin : China

MOQ : 1 piece

Price : Negotiable

Payment Terms : T/T, PayPal

Contact Now

5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module
Product Parameters
--GaN enables high efficiency and high output. The radio frequency and monitoring technical indicators of the power amplifier module stipulate the definition of each port of the module and the shape and structure of the module.
--The power amplifier uses domestic core key components and can operate normally at temperatures of -10~+55°C.

--This document stipulates the radio frequency and monitoring technical indicators of the 50W power amplifier module, the definition of each port of the module, the appearance and structure of the module, etc.

--This document applies to all aspects of product design, verification, production and quality inspection of the 50W power amplifier module.
Brand Name
PDFY
Working frequency
5725-5850MHz
Power
40W
Working Voltage
30V
Max Output Power
50dBm
Working Efficiency
≥60%
Gain
45±1.0,45±1.0 (external input 5dbm, power amplifier output 50dbm)
In-band group delay
In-band group delay
Passband Riplpe
≤2.5dB
Power supply requirements
≤5.5A

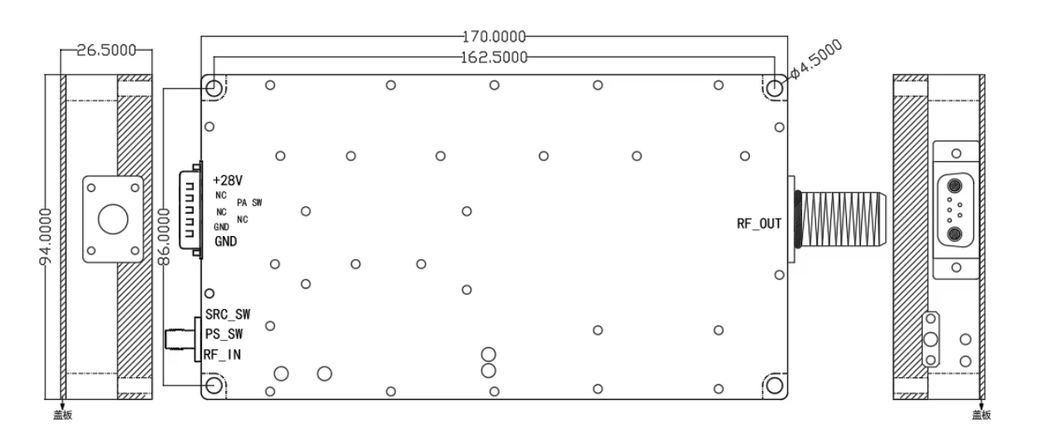

Size
170×94×26.5mm (excluding connectors)
Operating Temperature
-10~+55ºC
Output RF Connector
N-50KFD
Input RF Connector
SMA-KFD (optional)
5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module
5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module
Packaging & Shipping
5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

Company Profile

Welcome to Shenzhen Padi Flying Intelligent Technology Co., Ltd: Your Partner in Drone Security. We are a leading provider of comprehensive solutions in the anti-drone industry, dedicated to safeguarding airspace and critical infrastructure from unauthorized drone activity.

Why Choose Us:

Experience: With years of experience in the anti-drone industry, we have a proven track record of success.

Expertise: Our team consists of industry experts who are passionate about drone security and dedicated to providing the best solutions.

Trust: We have earned the trust of our clients through our commitment to quality, innovation, and exceptional customer service.

Choose Padi Flying Intelligent Tech Co., Ltd, we believe in a world where drone technology is used responsibly and safely. We invite you to explore our solutions and join us in

our mission to secure the skies
5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module
5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module5725-5850m 40W GaN and Lora Module for Anti Drone System Autel Anti Fpv C-Uas Mavic 3 Autel Fpv Poland RF Module PA Module

FAQ

1.Question : Why choose us ?

Answer : We have 6 years experience on drone business and one stop solutions of drone , especially on security .

2.Question : What is the minimum order quantity(MOQ) ?
Answer : No quantity limited , sample order or small order is acceptable.

3.Question : Could you offer wholesale price ?
Answer : Supportive,and wholesale price is better.

4.Question : How long is your delivery time ?
Answer : Generally 1-3 working days if stock available . Or need extra 3 working days to prepare goods .

5.Question : What is your product quality ?
Answer : Our raw materials purchased from qualified suppliers . And we have very strict qc standard to assure our final products meet your requirements .

6.Question : Can you print my own logo on the products ?
Answer : Yes , logo,packing design and other oem services are available .
We will prepare artwork for visual confirmation , then sample confirm finally bulk production .

7.Question : What's the payment terms ?
Answer : T/T , Western union , Paypal , Alipay and so on.
